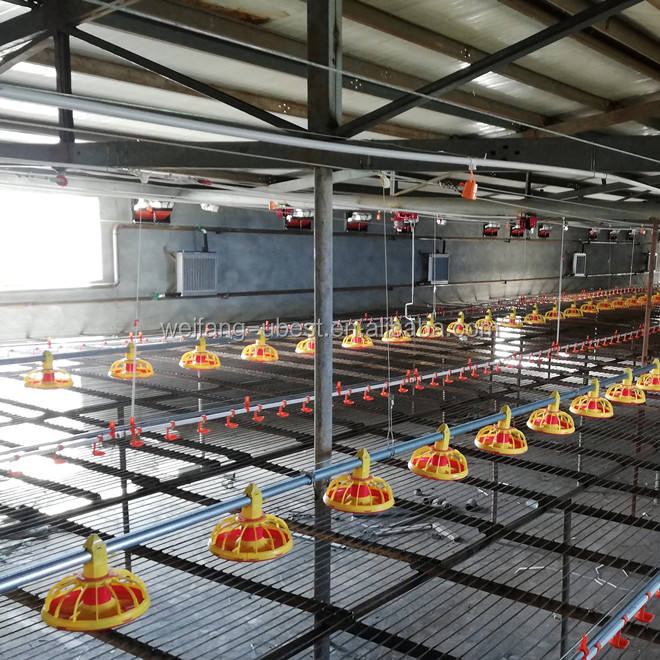

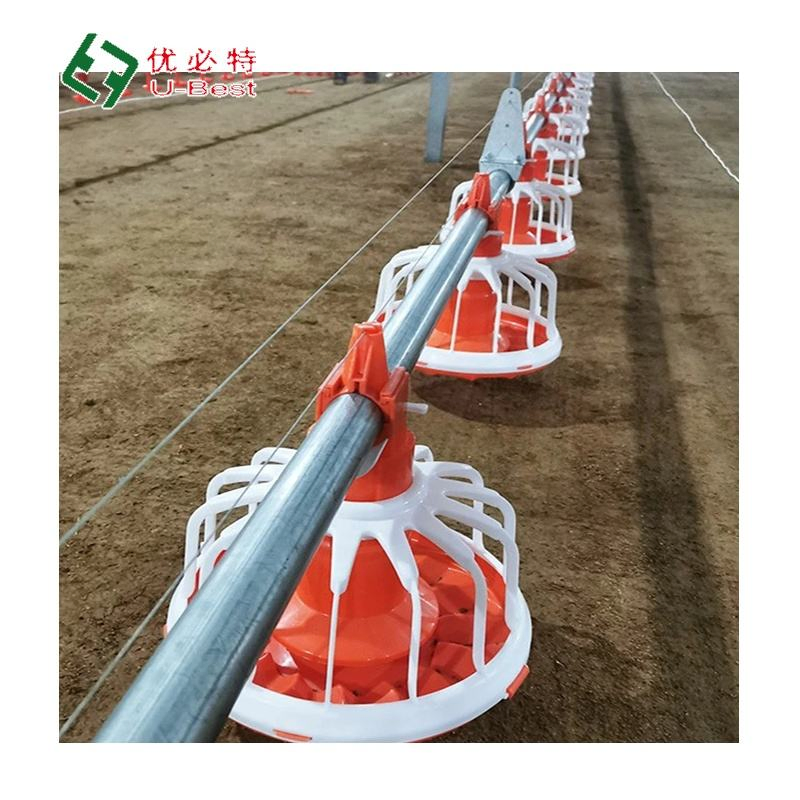

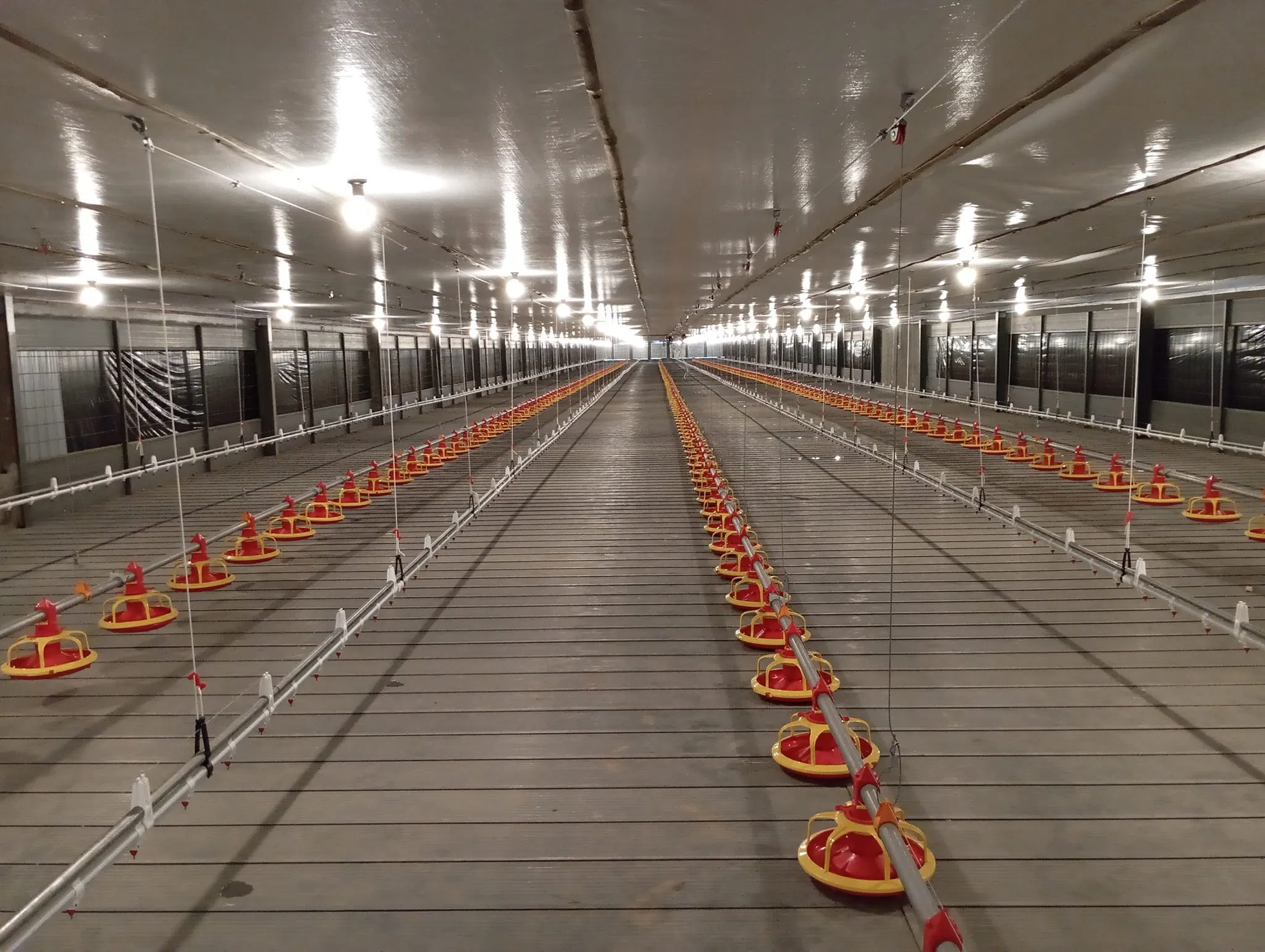

1Automatic Pan Feeding Line System

There is a pan feed sensor at the end of each feeding line which controls motors on and off to achieve automatic feed delivery.

Components of Pan Feeding Line System:

(1) Silo

• Silo with standard ladder and guard railing is safe and reliable.
• Solid connection and good sealing performance.
• Steel sheet double-layer galvanized ensure a service life of more than 10 years.
• FRP (Fiber reinforced plastics) silo has a good performance of anti-corrosive, moisture-proof, and easy installation.

Parameter of Silo:

(2) Feeder pan: 40-50 birds; 100% PP

(3) Feed pipe and Auger: Auger from South Africa

• Structure: 4 pans/3m or 3 pans/3m, 45mm diameter
• Made of high quality spring steel
• Long service life and not easily deformed

(4) Delivery: 36mm diameter Auger; 450kg/h

(5) Hopper: 70kg/90kg, 1.5mm thickness, galvanized sheet

• Surface spray treatment, wear-resistant anti-corrosion, beautiful appearance.
• The whole hopper is detachable, saving more space.
• Four different sizes of hoppers for selection, customizable according to requirements.

(6) Feed sensor: Germany IFM or Israel Agrologic

(7) Driving motor: 0.75kw, 380V/220V, 50HZ/60HZ, three phase or single phase.

• Die-cast aluminum alloy shell and input & output flange, excellent heat dissipation, no rust, stable and reliable.
• Split Gearbox, quick and easy to replace.

(8) Turbo: Convenient for feeding, easy to clean, beautiful appearance.

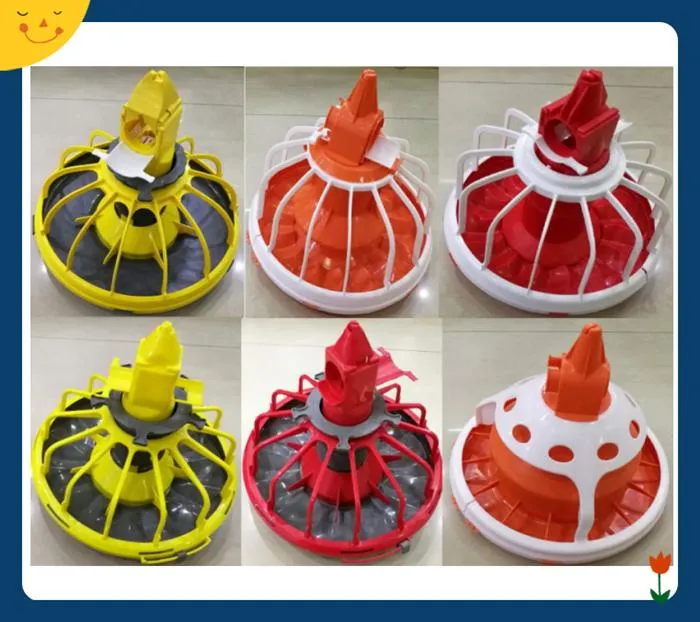

Feeding Pan Selection:

We offer multiple types of feeding pans to suit your structural preferences.

Product Features:

1. Round pan feeders are made of corrosion-proof plastic.
2. The enclosed feeder tube keeps feed fresh, allowing pans to swing freely.
3. "V"-shaped pan bottom and double pan lip help to catch feed.
4. Feed windows work with available chutes.

Advantages:

1. Give birds more eating space and provide top feed conversion.
2. Consist of just two precision-molded parts plus chutes or flood collar if used.
3. Birds can enter and exit pans easily without restriction.
4. Attaches securely to dome, or hangs for easy cleaning and drying.
5. Innovative design recognized by the American Society of Agricultural.

Rotary Feed Gate:

1. Adjust the feeder's variable flood level.
2. As birds grow, close the rotary gate and use one of the six grow-out feed settings.
3. Pan edge is both deep and shallow, controlling waste and giving easy feed access.

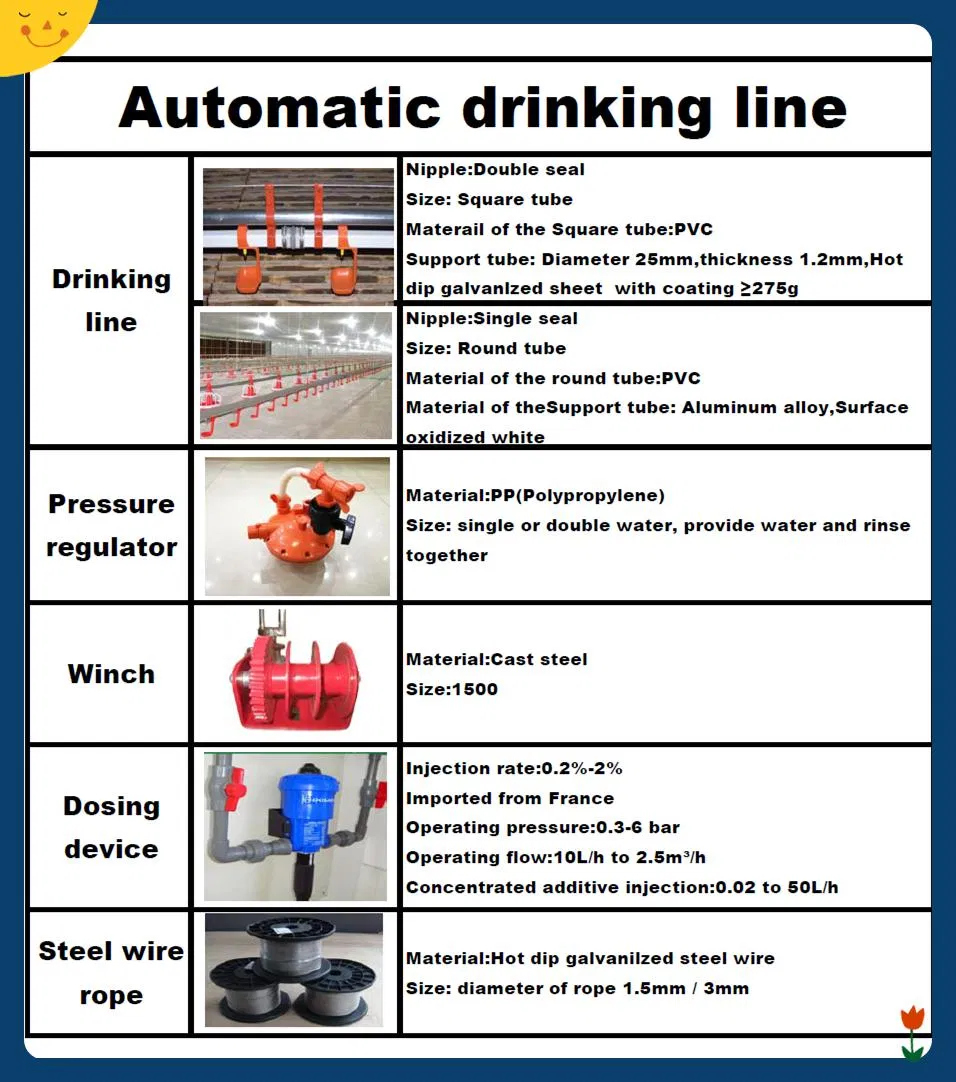

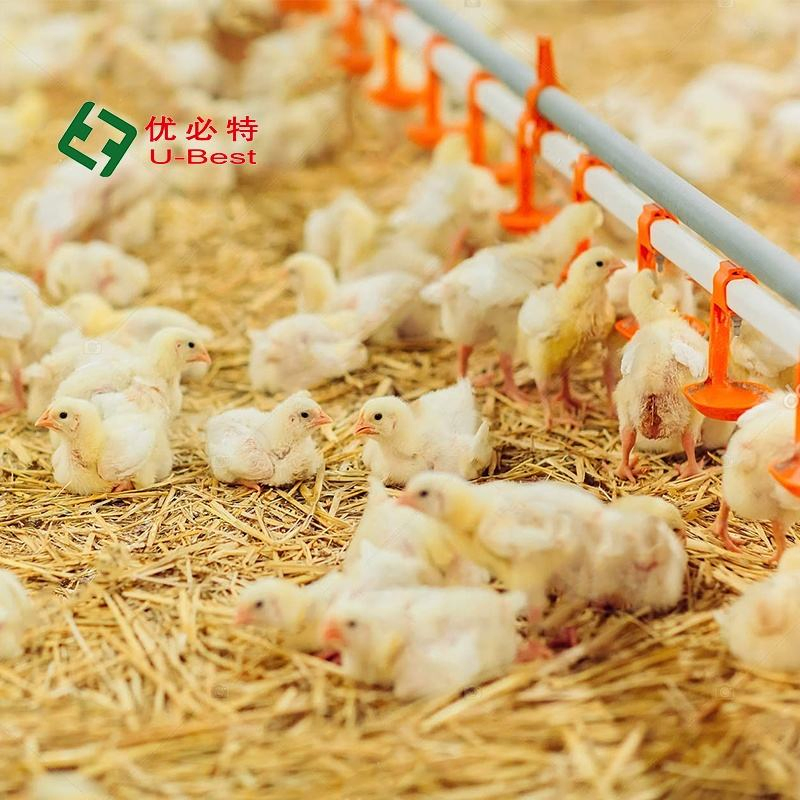

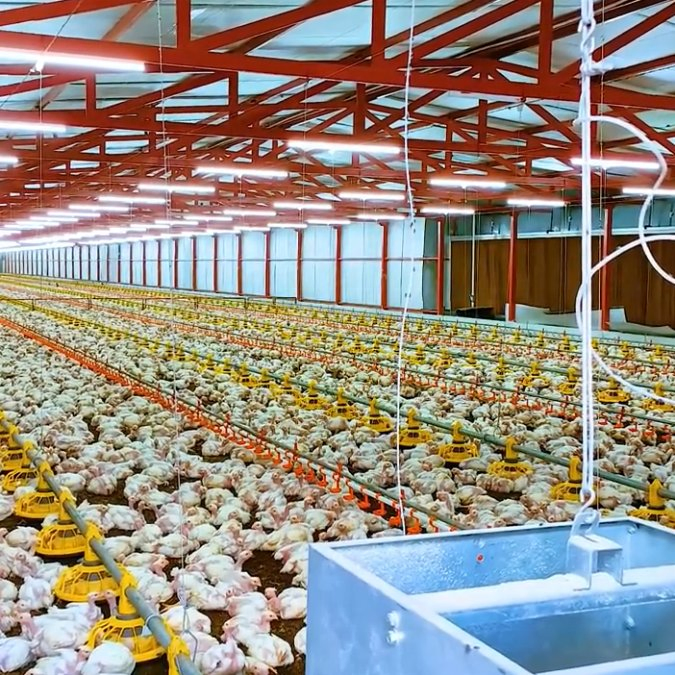

2Automatic Nipple Drinking Line System

This system provides fresh and clean water for poultry, which is crucial for optimal growth. The drinkers can be triggered from 360 degrees, helping young birds start well and making drinking easier.

Components of Nipple Drinking Line System:

(1) Nipple: 360-degree action triggering. Made of POM and stainless steel. Double-sealed with cone valve. Good sealing effect and strong stability.

(2) Pipe:

• Square water pipe: Adopts 22x22 pure raw material PVC square tube. Reduces the growth of bacteria and moss.
• Round water pipe: Plasson type, Aluminum alloy support, more corrosion-resistant, smooth water flow, snap-in installation.

(3) Regulator (One/Two outlets): Integrated pressure regulation, recoil, and water level display. Easy operation and quick response. Internal valve made of soft, anti-aging raw material.

(4) Water drip cup (One/Two arms): Hollow designed water cup is stable.

(5) Lift winch: Gear after wear-resisting and strength processing. Surface sprayed for durability and aesthetic appearance.

(6) Filter: Main function is to clean water and avoid blocking nipples.

(7) Doser/Medicator: Precise metering for all flow rates. High dosing range and high flow rates. Long service life, high operational safety, and selective spare parts kits for rapid replacement.

Advantages:

1. Maximum hygiene.
2. Optimum water intake even for day-old birds.
3. Super proportional increase of passage rate.
4. Allows animals to take in water easily.
5. Dry litter.
6. High operational reliability.

3Automatic Ventilation System

This system controls climate conditions, fresh air, humidity, and temperature in the poultry shed. It is vital for growing birds. Options include air inlets, axial flow fans, and butterfly cone fans.

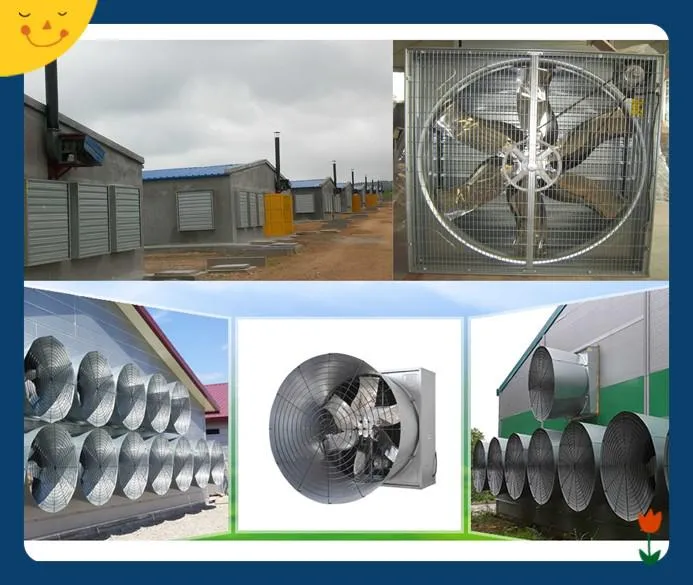

Exhaust Fans:

(1) Model: Centrifugal box fan; Hanging fan; Shutter/Butterfly cone fan; Variable speed fan.
(2) Size: 24'', 36'', 50'', 50'' cone.

Features:

• Ensures minimum wind resistance and optimum performance.
• Belt: Automatic tensioning device improves transmission efficiency and prolongs service life.
• Frame: High quality hot-dip galvanized steel sheet.
• Motor: Three-phase motor with 3C certification, high efficiency, energy-saving, safe and reliable.

Advantages:

• Air admission and exit sides designed for a high air flow rate.
• Ensure optimum operation for lower energy costs.
• Minimal air resistance and low noise level.
• Stable, robust, and simple construction.
• Made of polypropylene for high corrosion resistance and long service life.
• Easy to assemble and install.

Fan Parameter Specifications:

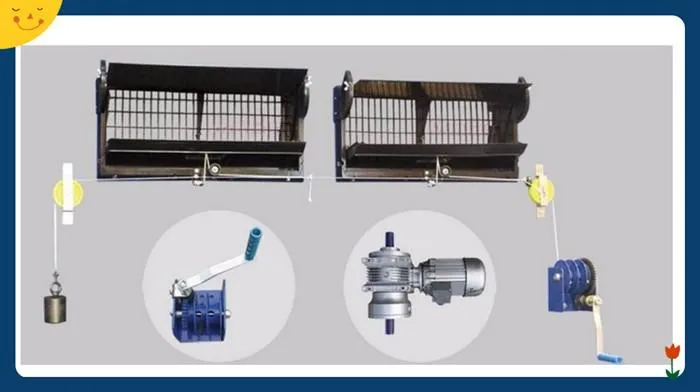

Air Inlets:

Air Inlet Features:

• Use: With hood type for breeder; with mesh type for broiler.
• Winch: Manual or Automatic control options.

Air Inlet Advantages:

1. Designed with UV resistant additives for stronger anti-aging ability and longer service life.
2. Unique window edge structure provides tight and firm closing.
3. Wind deflector ensures better overall ventilation control.
4. Double spring design provides excellent sealing.
5. Flexible opening mechanism equipped with anti-bird nets.

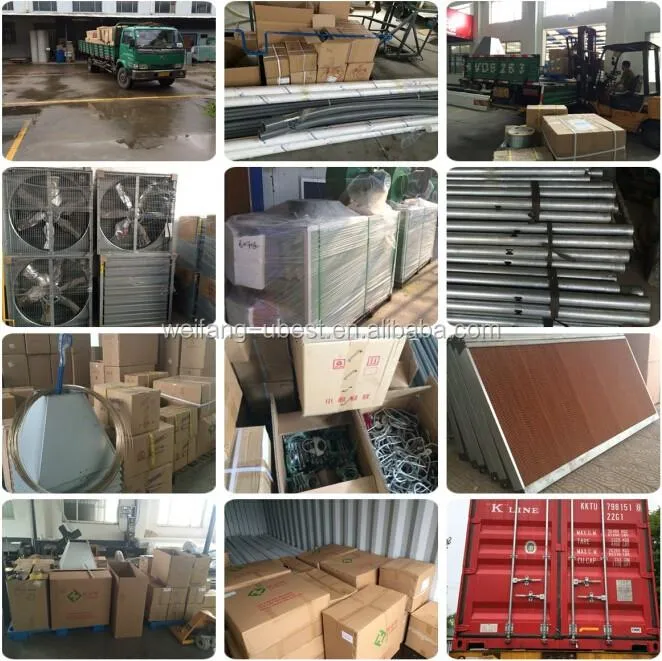

Packaging & Shipping Details

• Shipment Method: Available by FCL (Full Container Load) or LCL (Less than Container Load).
• Delivery Time: 10-15 working days following the initial deposit.
• Packaging Structure:
  • Feeder pan: Disassembled / ensemble packaged in carton boxes.
  • Feeding pipe: Packaged with 20pcs per bunch, shipped in bulk.
  • Hanging system: Packaged securely in carton boxes.
  • Watering pipe (fitted with nipples): Packaged in plastic bags, 20pcs per bag.
  • Water system spare parts (Medicator, regulator, drip cups): Organized in carton boxes.
